Single Stage Centrifugal Transfer Pump
PLAD BM-101208G-6ABF1-1 End Suction Centrifugal Pump (1" x 1-1/4", Ni-Resist / Viton, 250°F) — New/Unused Spare
Listing Summary

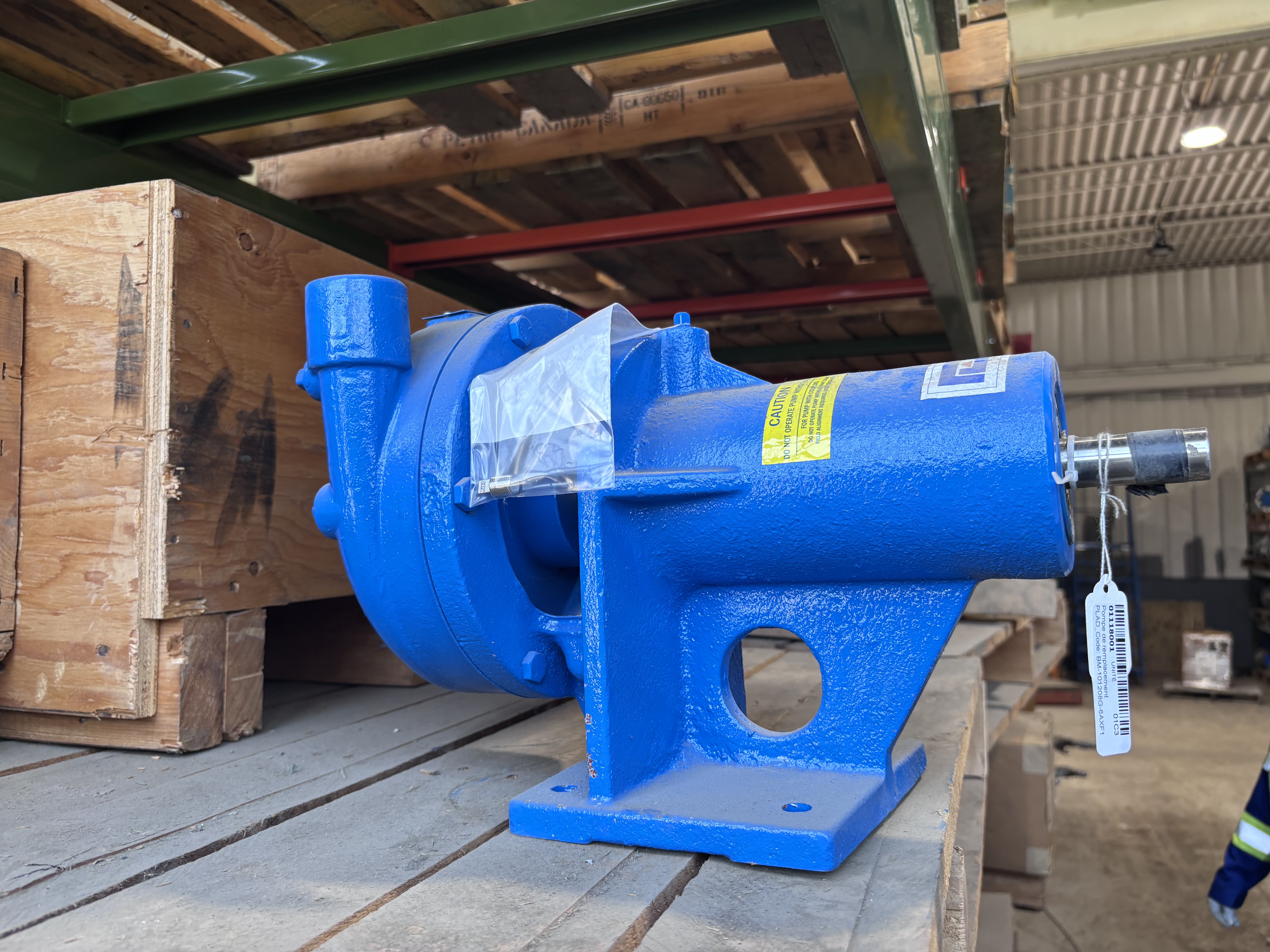

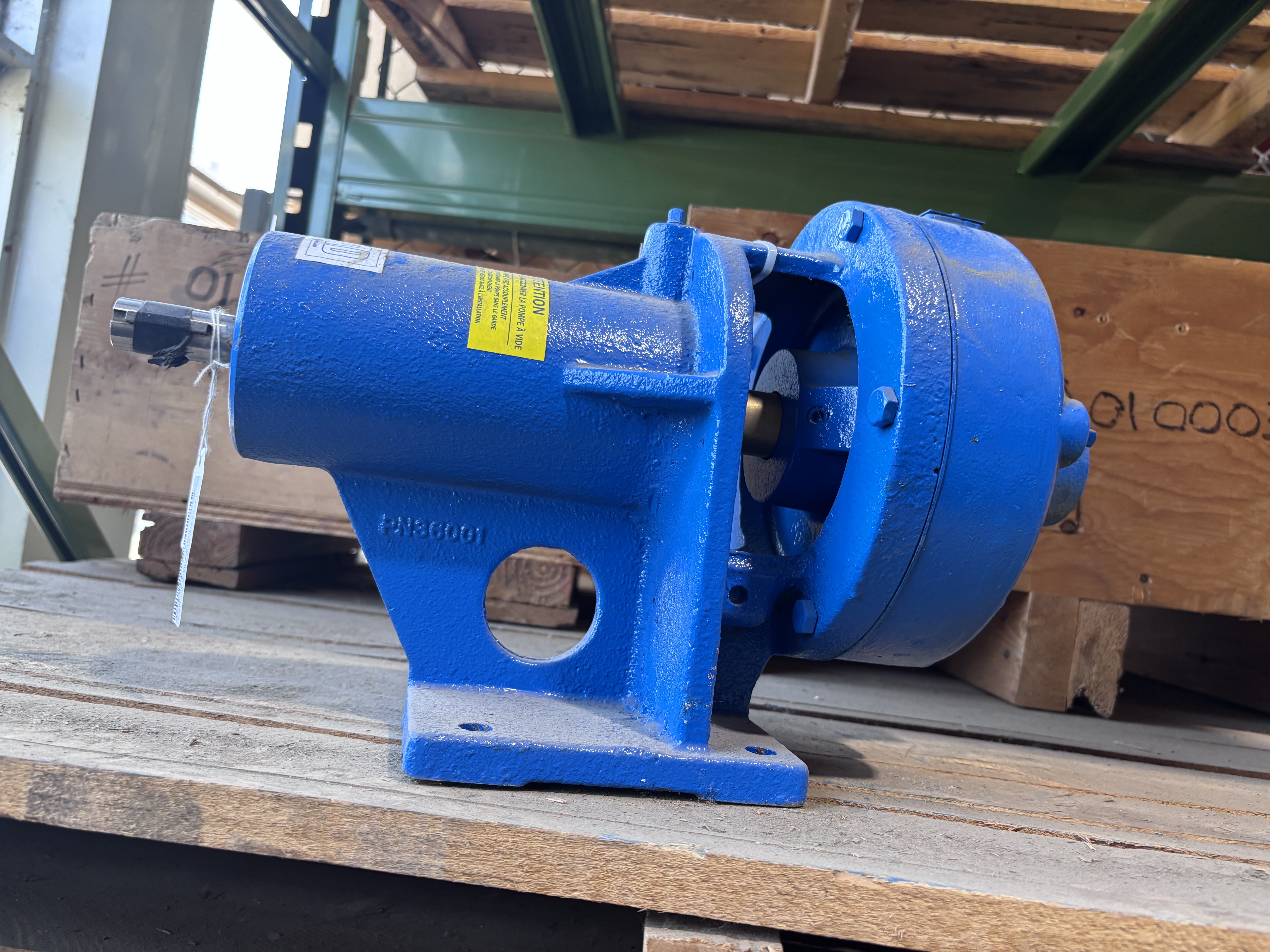

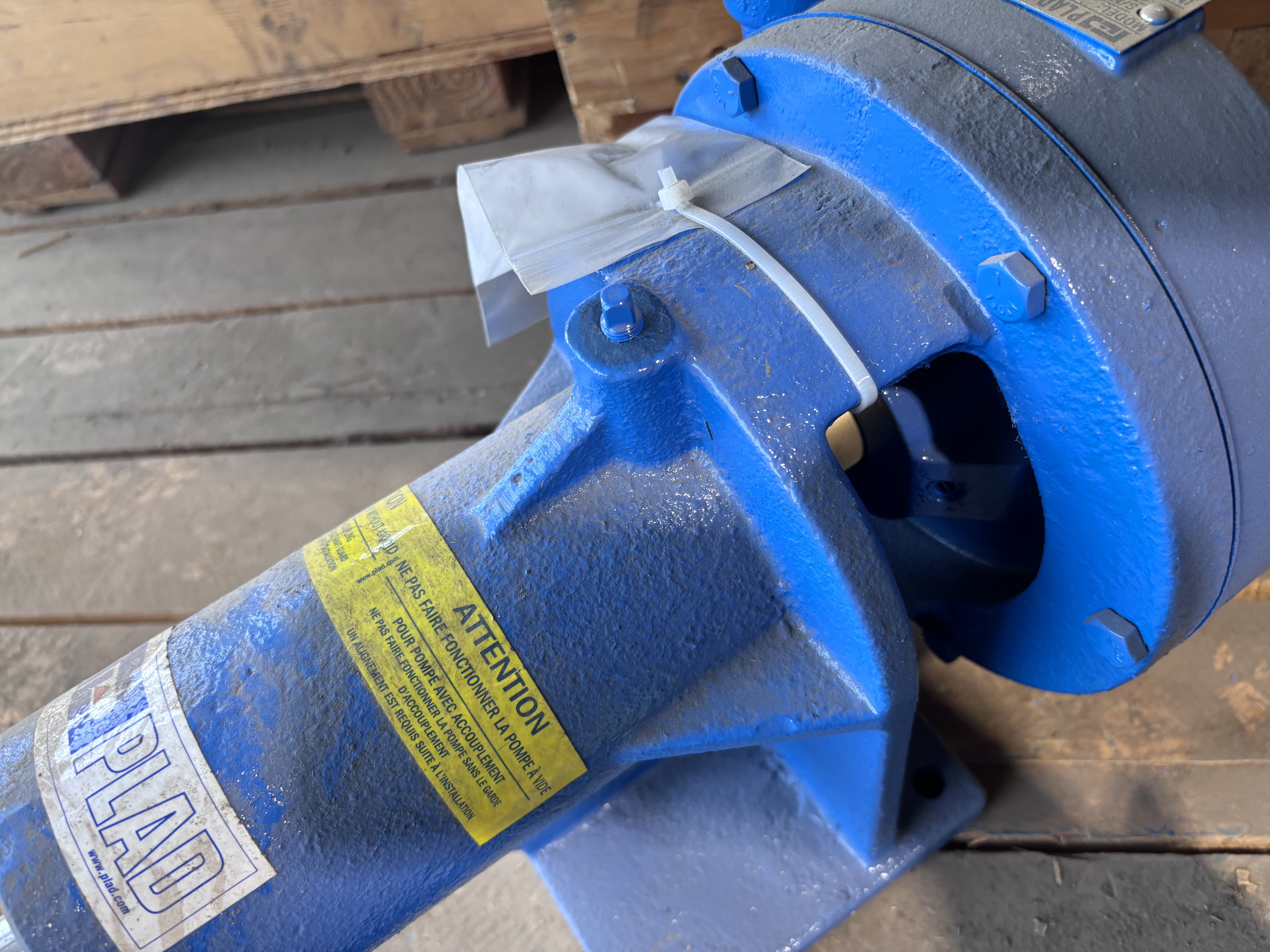

Available for sale is a New/Unused PLAD Model BM-101208G-6ABF1-1 End Suction Centrifugal Pump. This is a bare pump (pump end only, no motor) designed for horizontal base-mounted applications.

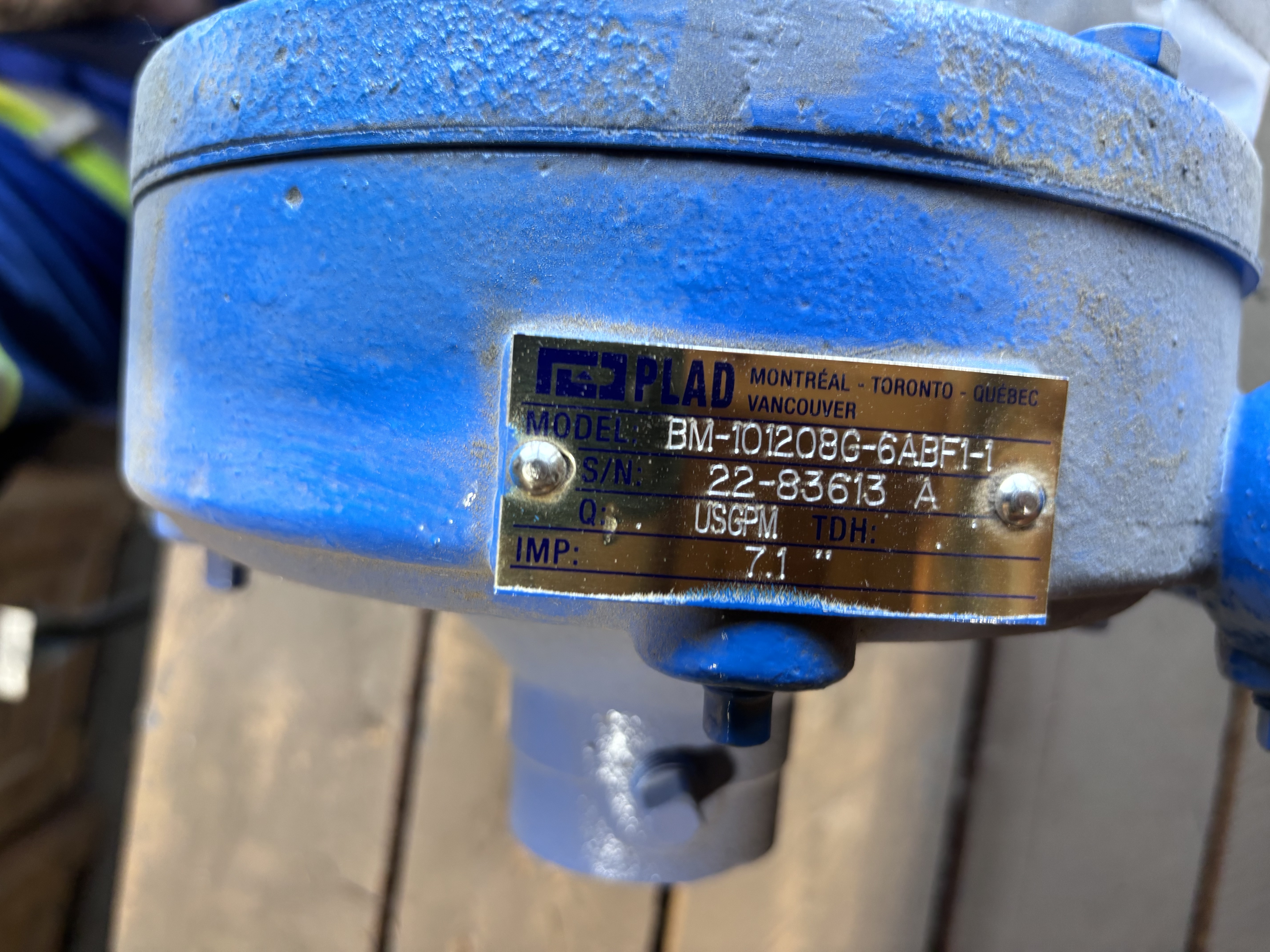

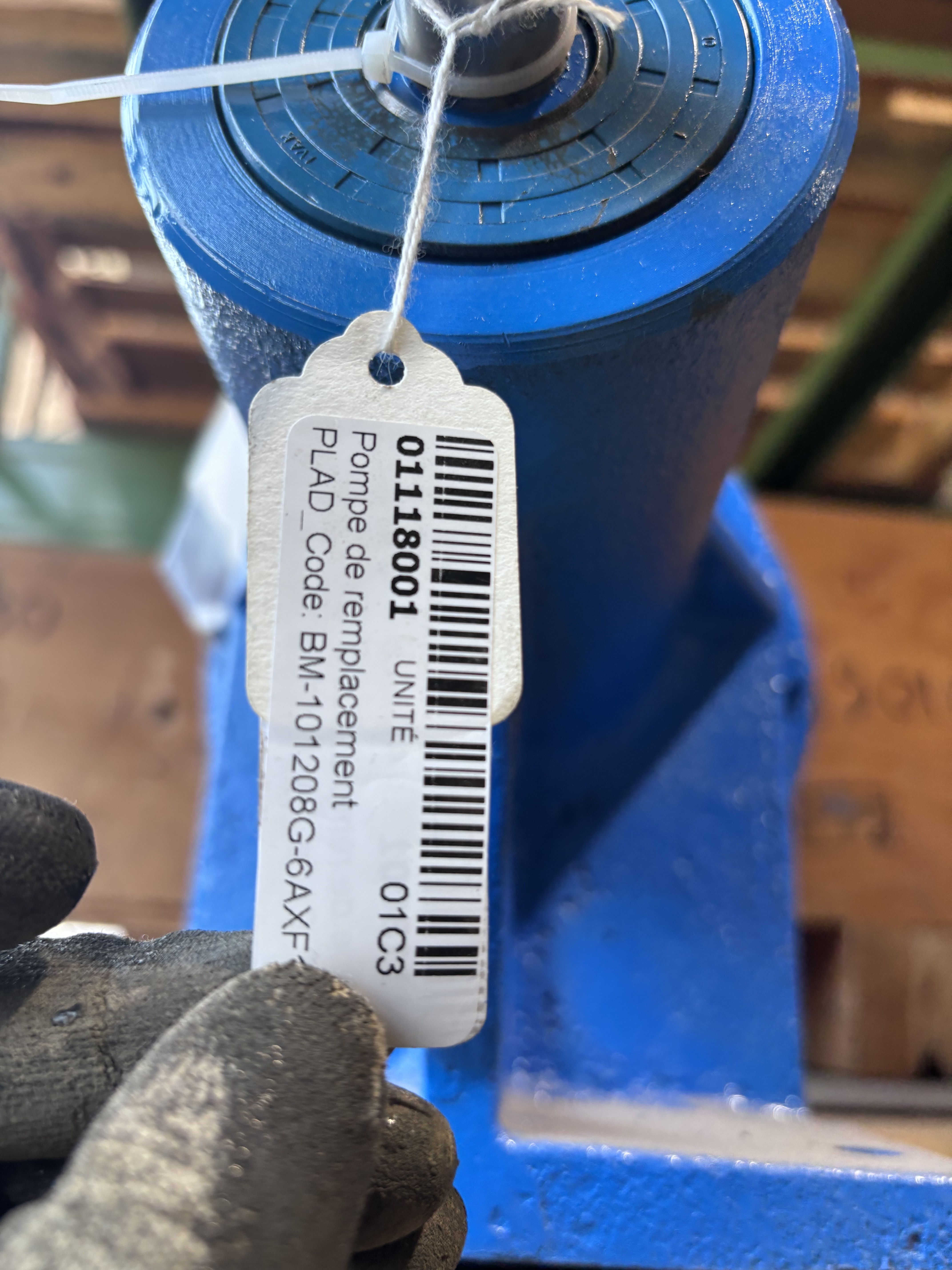

This unit was stocked as a critical spare and has never been installed. The inventory tag identifies it as a "Pompe de remplacement" (replacement pump), PLAD Code BM-101208G-6AXF1, cross-referencing the nameplate model BM-101208G-6ABF1-1. It features a heavy-duty cast iron casing with a 7-inch cast iron impeller, upgraded with a Ni-Resist / Viton mechanical seal rated for high-temperature service up to 250°F (121°C).
The PLAD BM series is an industry standard in Canada for rugged, reliable fluid transfer in commercial, industrial, and HVAC applications. The back pull-out design allows for easy maintenance without disturbing the system piping.
Key Specifications
| Specification | Detail |
| Manufacturer | PLAD Equipment Ltd. (Montreal / Toronto / Vancouver) |
| Model Number | BM-101208G-6ABF1-1 (per nameplate) |
| Serial Number | 22-83613 A |
| Pump Type | End Suction, Single Stage, Horizontal Base-Mounted |
| Suction Size | 1-1/4" |
| Discharge Size | 1" |
| Impeller Diameter | 7.1" (per nameplate) |
| Impeller Material | Cast Iron |
| Casing Material | Cast Iron |
| Mechanical Seal | Ni-Resist / Viton (High Temperature) |
| Max Temperature | 250°F (121°C) |
Typical Applications
With its Ni-Resist and Viton mechanical seal upgrade and 250°F temperature rating, this pump is highly versatile and suitable for:
•High-Temperature HVAC Systems: Hot water circulation and boiler feed applications.
•Industrial Process Fluids: Transfer of light chemicals, mildly corrosive fluids, or high-temperature process water where standard Buna-N/Carbon seals would fail.
•Commercial Plumbing: General water transfer and pressure boosting.
•OEM Replacement: Direct drop-in replacement for existing PLAD BM-101208G-6ABF1-1 installations.
