Eaton Bussmann Double-Barrel Medium-Voltage Fuses - QTY 3
Listing ID:
IH-68218
Description
Eaton Bussmann 15BHLE-150E 15.5 kV, 150E Double-Barrel Medium-Voltage Fuses — 3-Unit Lot
Notes:
Listing Summary

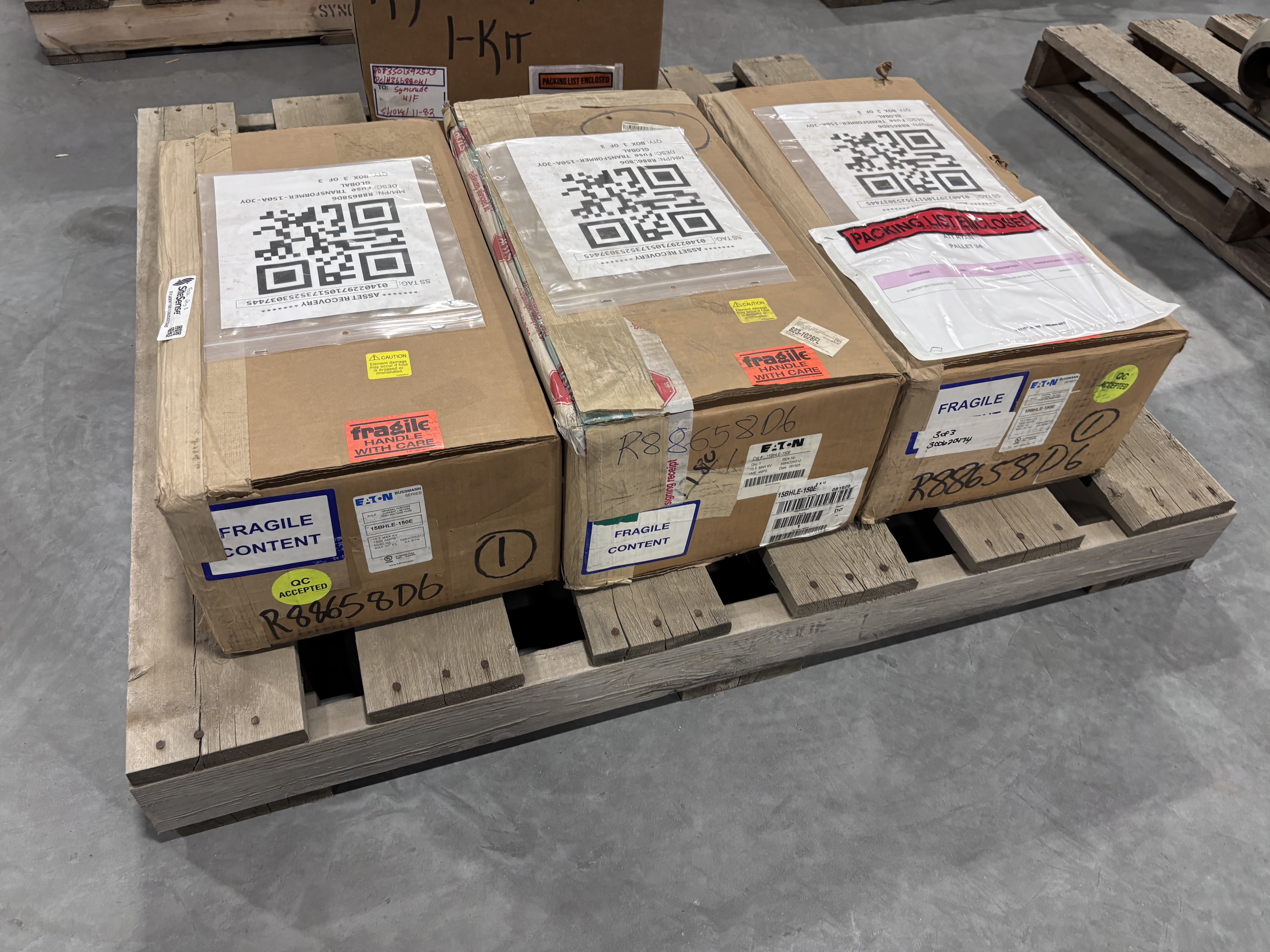

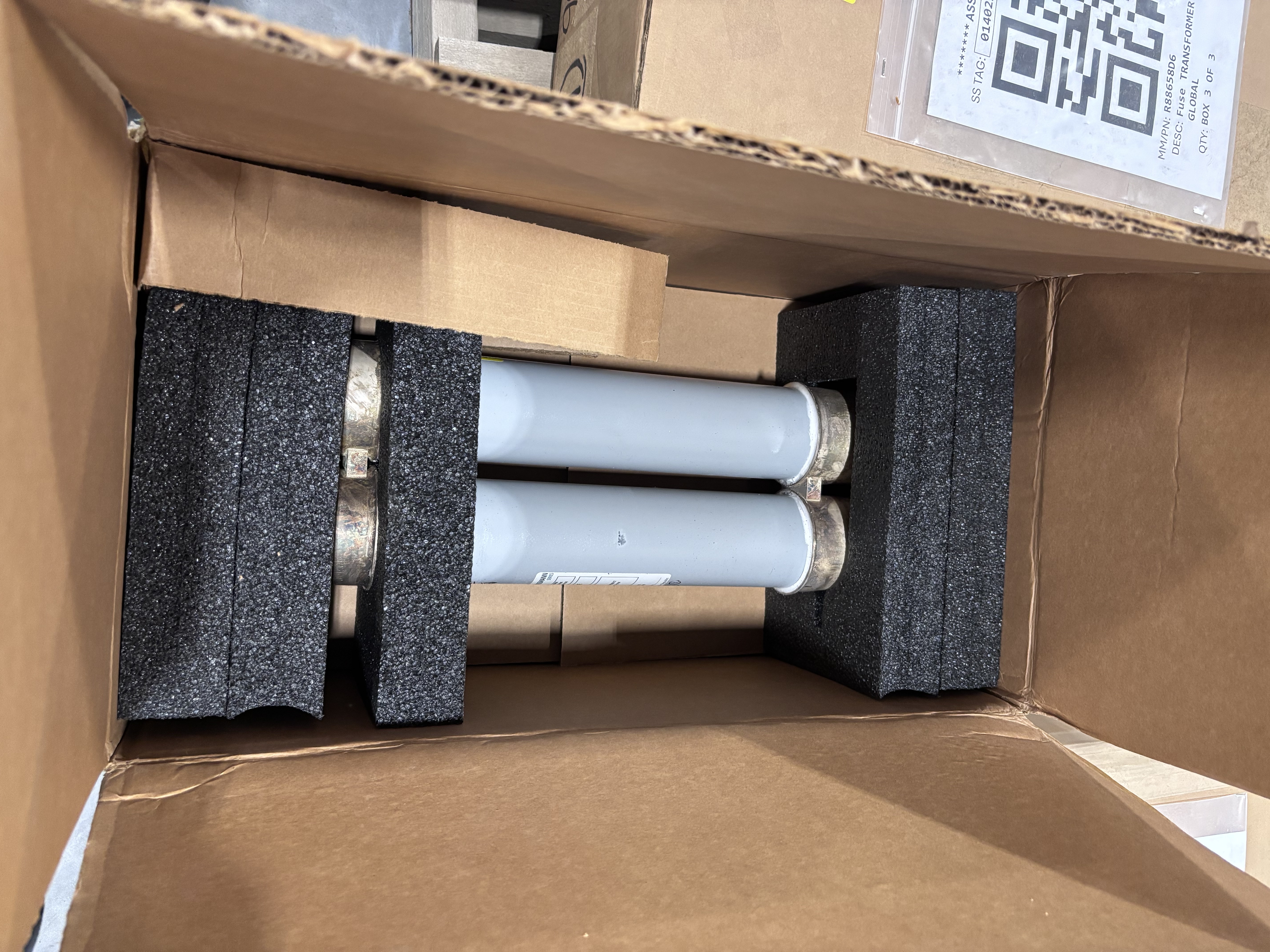

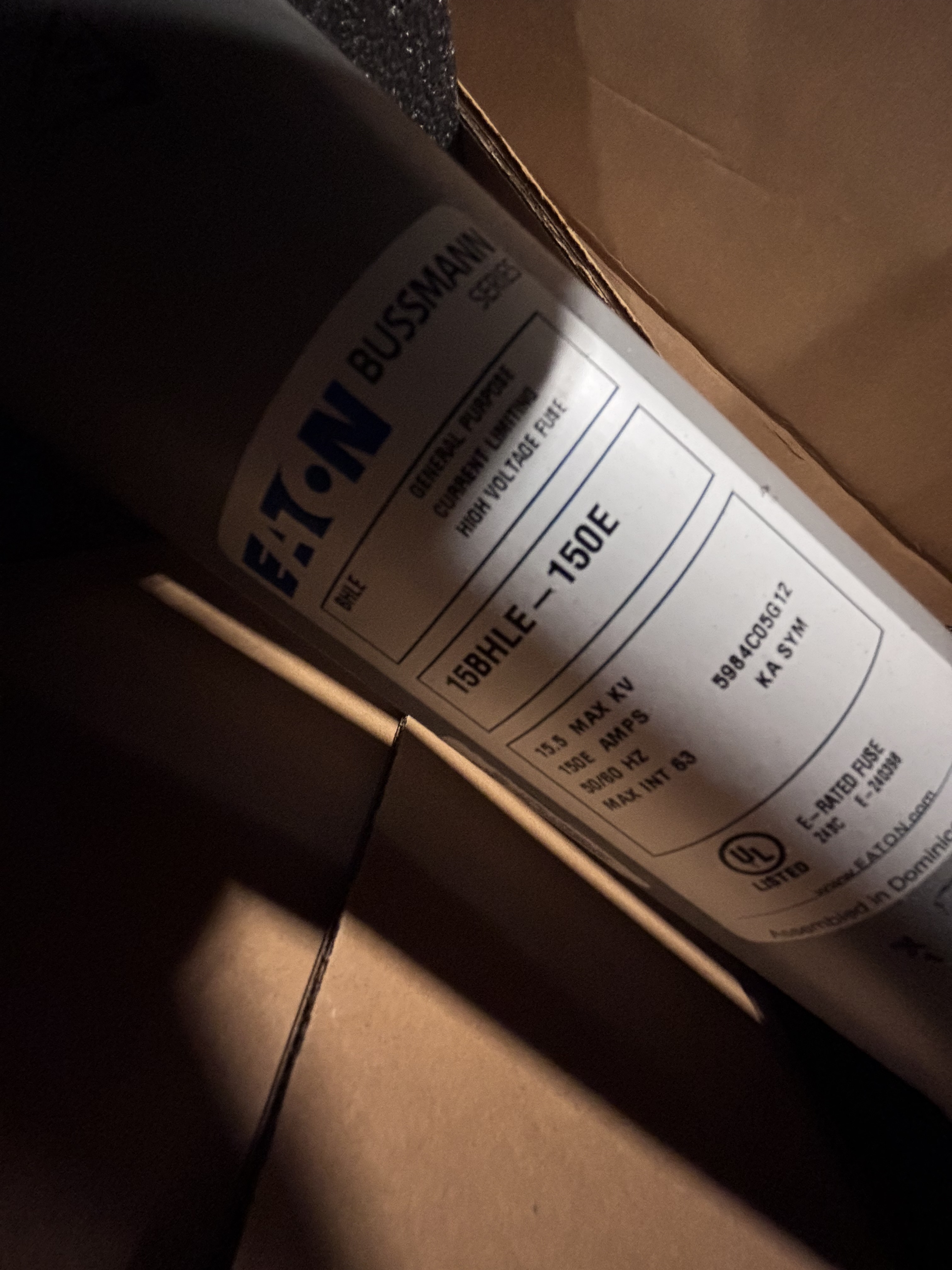

Offered as one lot of three Eaton Bussmann Series 15BHLE-150E E-Rated, current-limiting, medium-voltage fuse assemblies. Each fuse is a double-barrel, bolt-in configuration supplied in its individual manufacturer-labelled carton. The cartons show protective internal foam; one was opened for the supplied condition photographs.
| Field | Verified detail |
| Manufacturer | Eaton Bussmann Series |

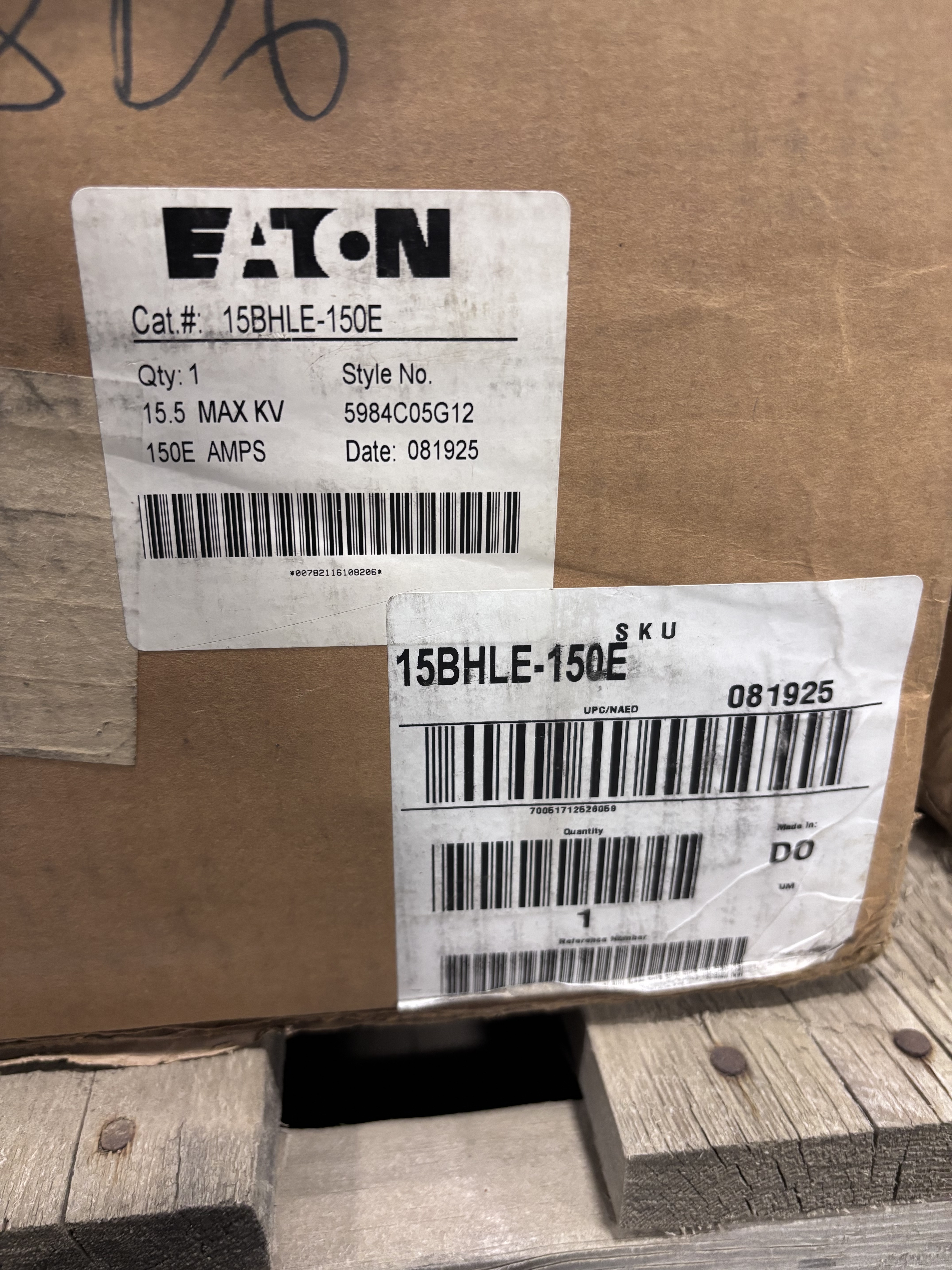

| Catalog number | 15BHLE-150E |
| Manufacturer style number | 5984C05G12 |
| Lot quantity | 3 complete double-barrel fuse assemblies |

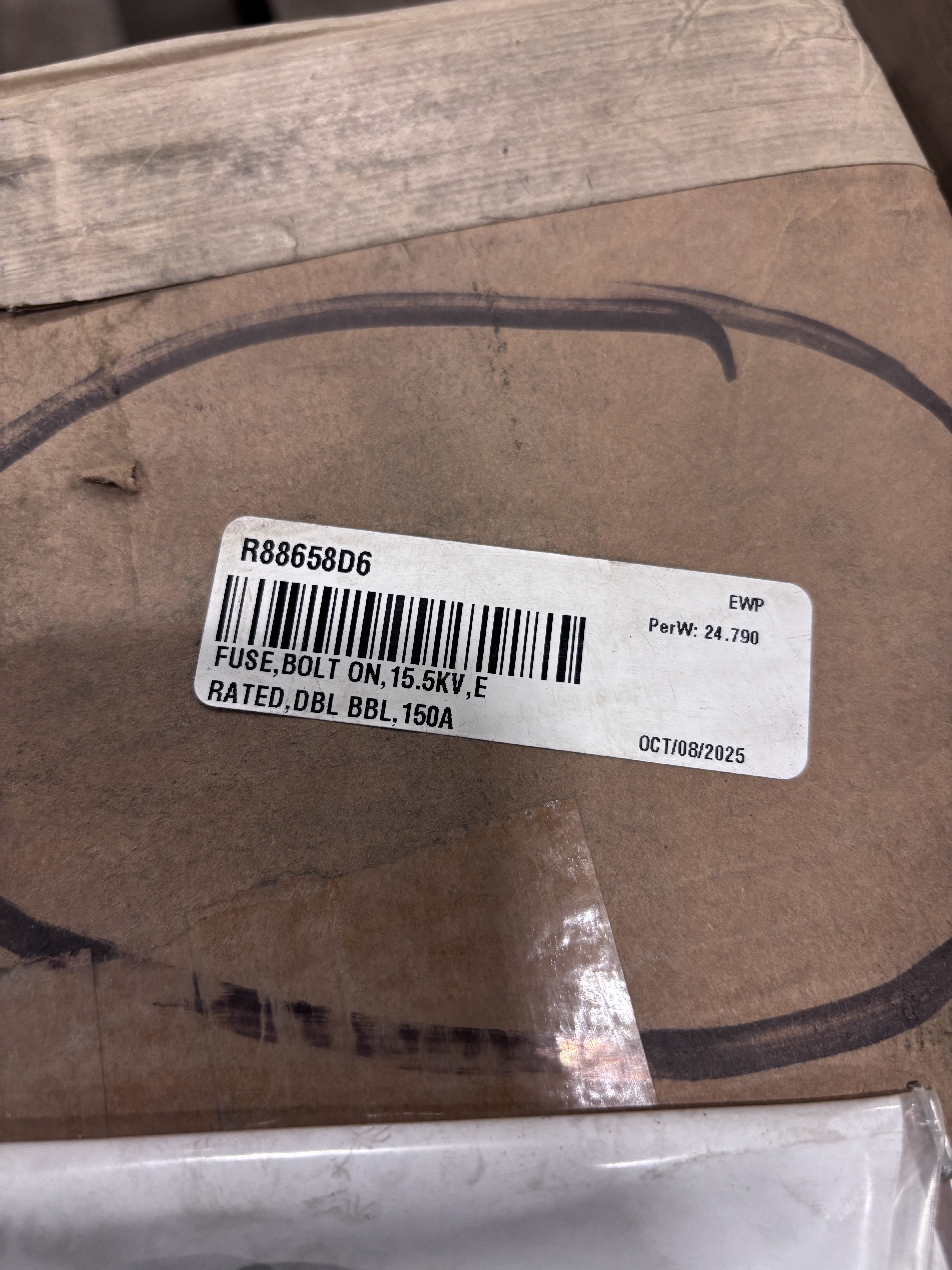

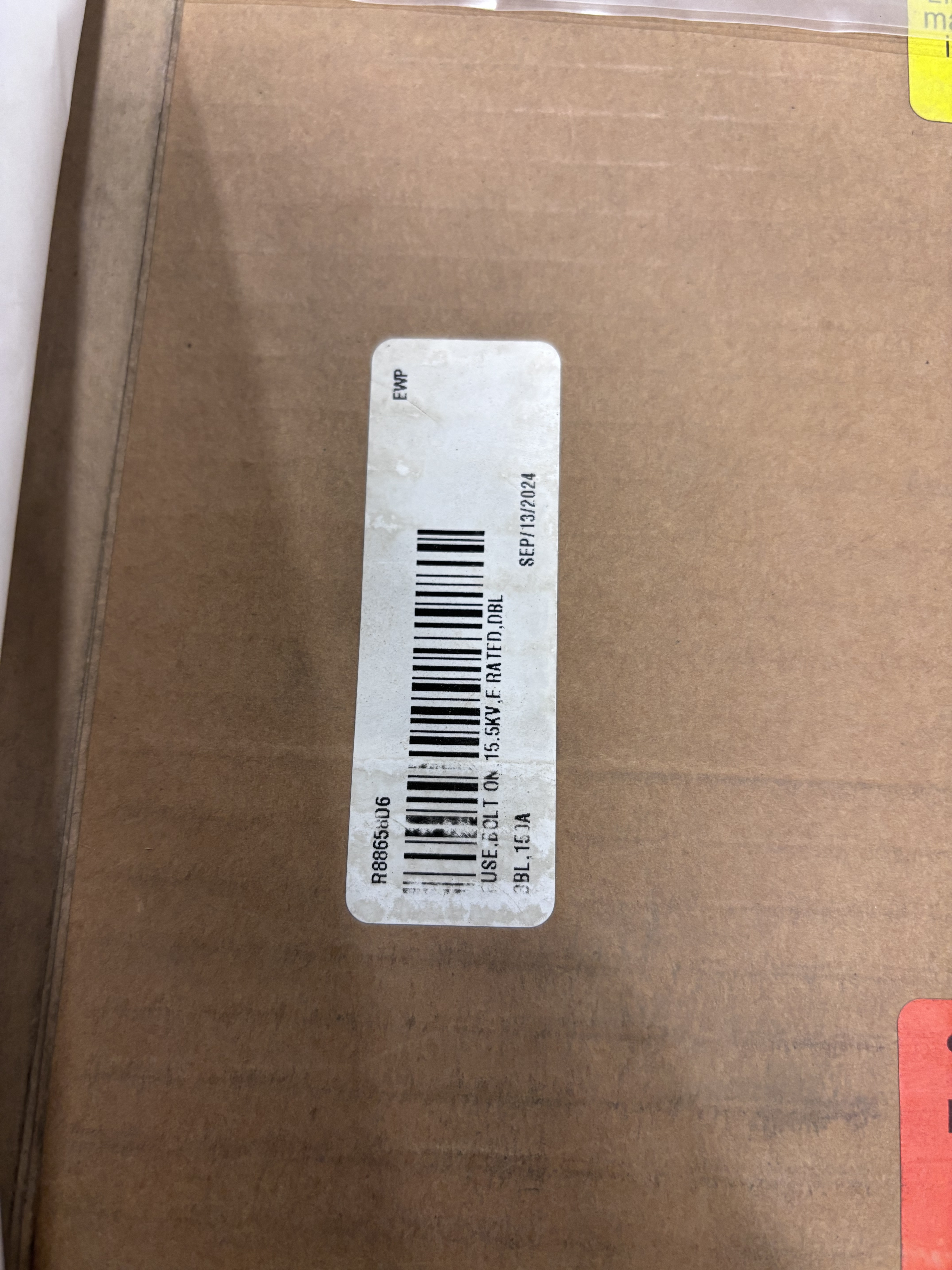

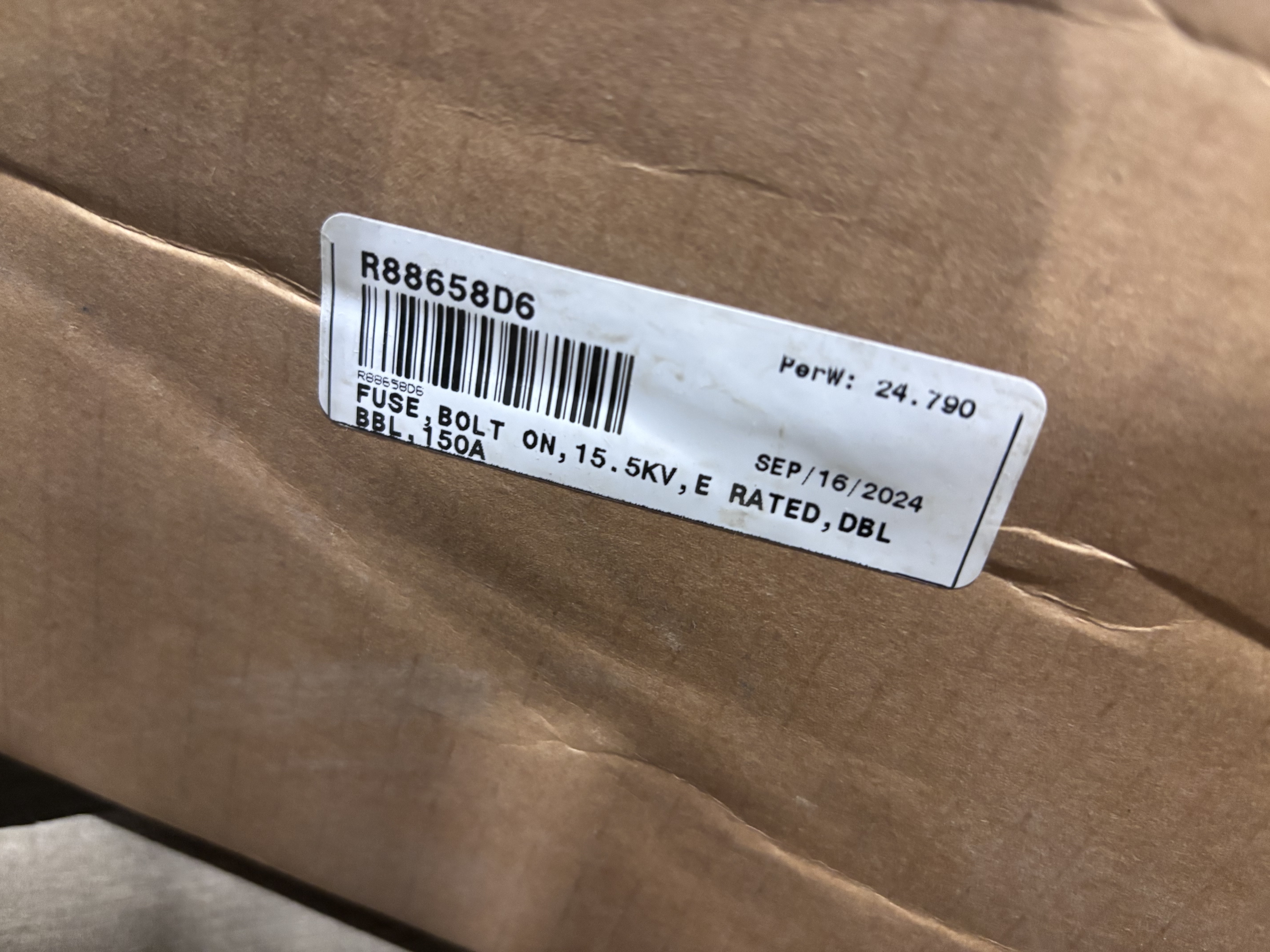

| Years noted on tags | 2024 and 2025 |
| Fuse type | General-purpose, current-limiting, E-Rated medium-voltage fuse |
| Voltage rating | 15.5 kV maximum; 14.4 kV nominal per OEM product reference |
| Current rating | 150E / 150 A |
| Frequency | 50/60 Hz |
| Interrupting rating | 63 kA symmetrical / 63 kAIC |
| Class / connection | Class E; bolt-in / bolt-on, double-barrel |
| Installation environment | Indoor/outdoor per OEM product reference; final equipment and enclosure suitability must be verified |

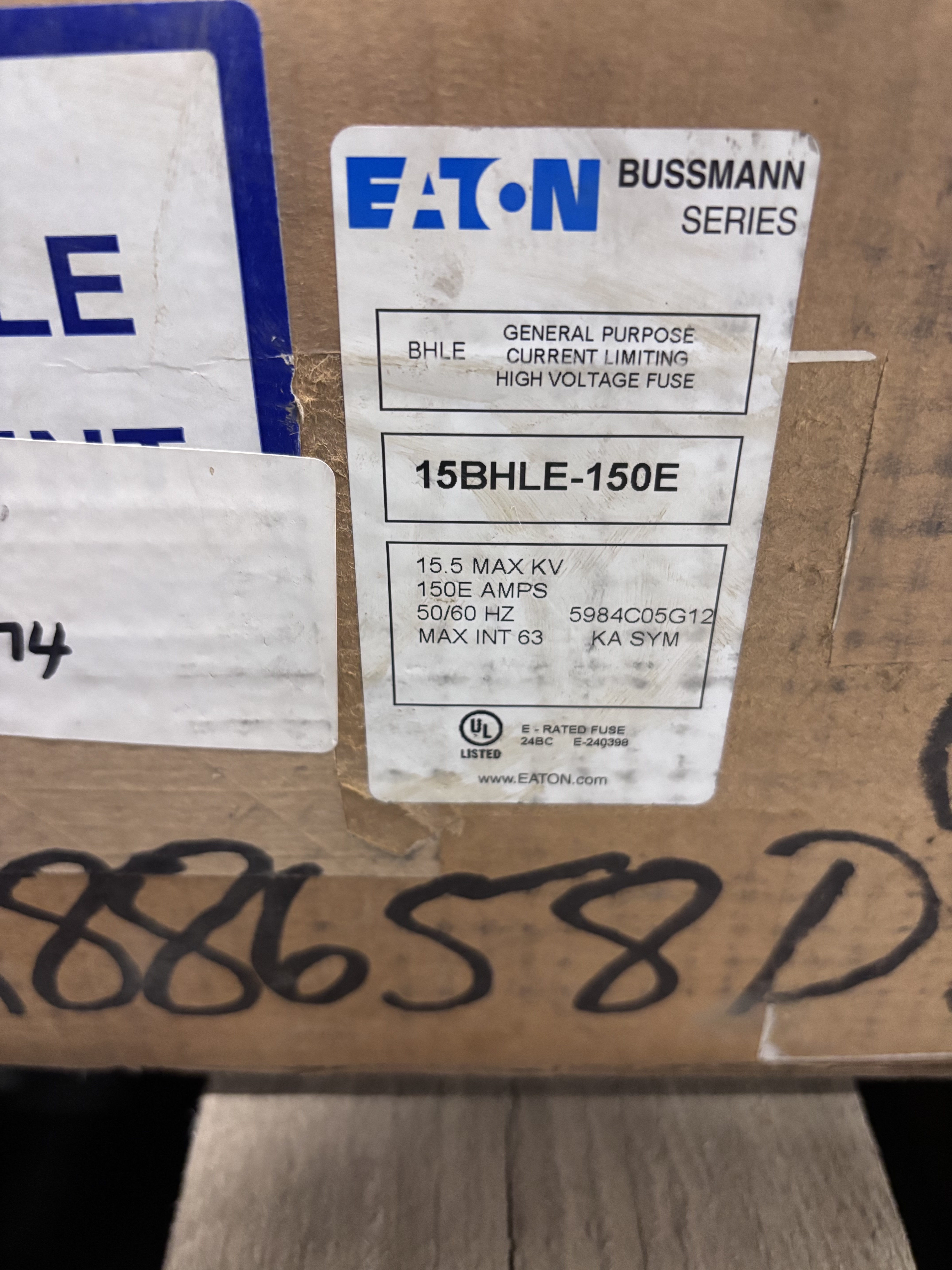

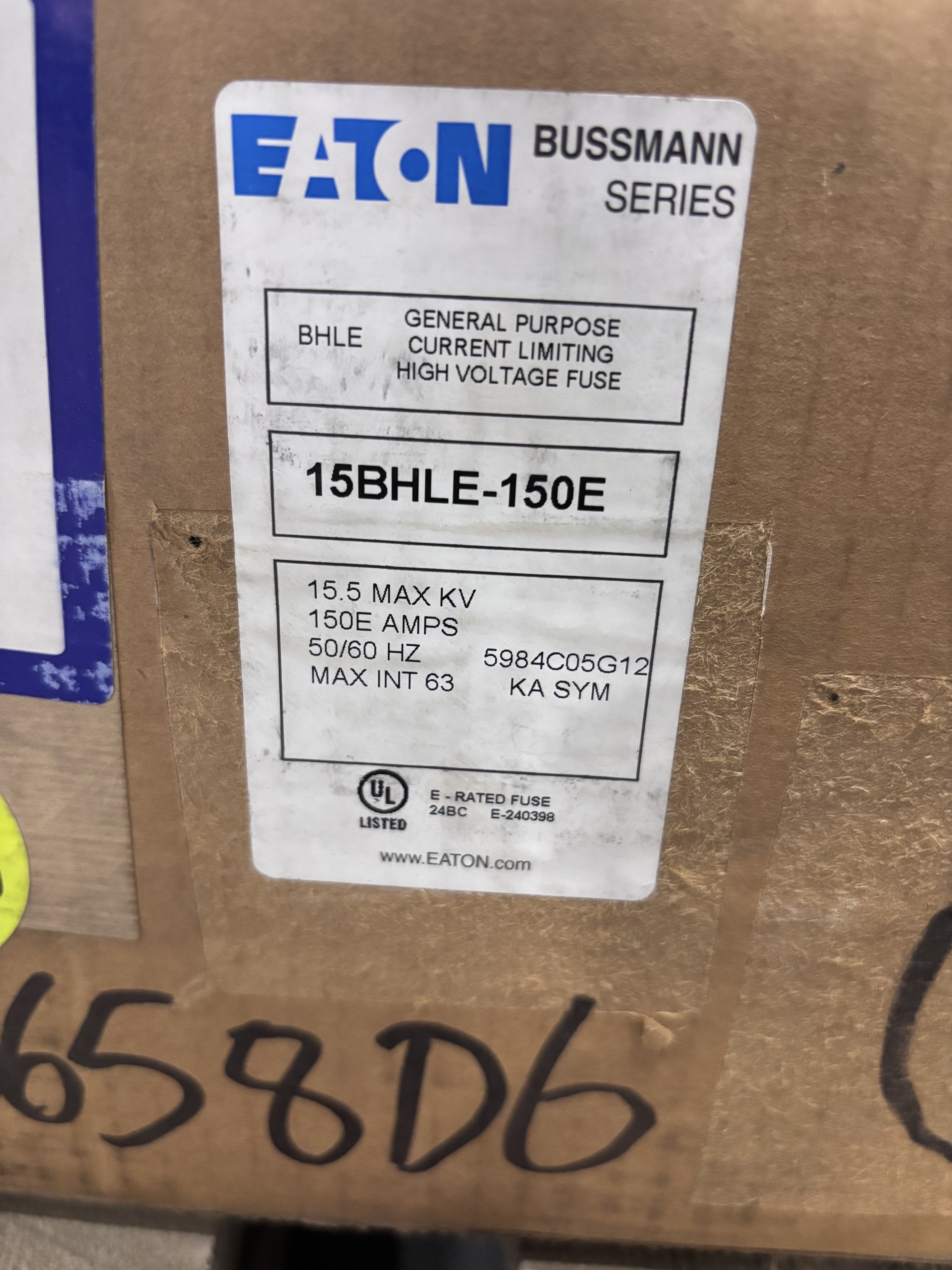

| UL marking | UL Listed E-Rated Fuse; Guide 24BC, File E-240398, as printed on the carton label |
| Manufacturer-published unit dimensions | Approximately 22.25 in. L × 7 in. H × 3 in. W |
| Manufacturer-published unit weight | Approximately 20 lb per complete assembly |
| Estimated lot freight weight | Approximately 60 lb / 27.2 kg fuse-only |
| Condition | A — New/unused surplus; carton-stored with protective internal packaging; no dielectric, continuity, insulation, or application test performed after storage |
